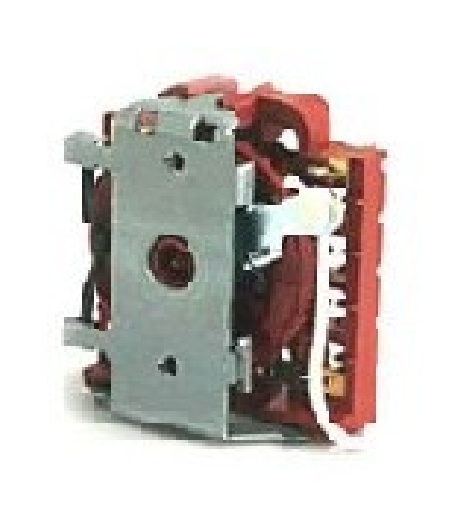

| Specifications |
|
| |
- 12A 250V~;16(4)A 250V~;16(8)A 250V~
8A 400V~;10(2)A 400V~;10(4)A 400V~
1hp 120Vac;2hp 240Vac;12A,16A,25A 250Vac
- 8 positions indexing at 45º.
9 positions indexing at 40º.
- Up to 4 circuits.
- Ambient temperature rating 125ºC / 150ºC.
- Smooth torque.
- PA. 6.6 Self extinguishing V-0 filled with 25% glass fibres.
- Contact pressure by steel coil spring.
- Silver contacts.
- By request discs, knobs, cords, etc. can be supplied.
|
|
|
|
| |
Mounting Options |
|
| |
- 2 fixing screws M3 at 28 mm centres' holes.
- 2 fixing tabs at 20 mm centres.
|
|
| |
Shaft |
|
| |
- Section: 6 mm x 4,6 mm.
- Lenght: up to 32 mm.
|
|
| |
Terminals |
|
| |
- Tab:
6.35 mm x 0.8 mm single or double.
4.8 mm x 0.8 mm single.
- Screw terminal.
- Terminal for printed circuit.
|
|
| |
