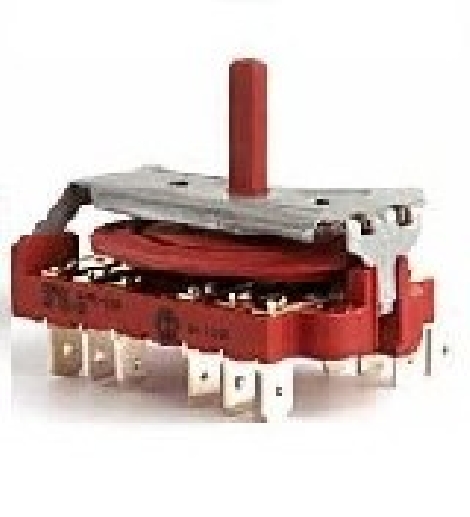

| Specifications |
|
| |
- 12A 250V~;16(4)A 250V~;16(8)A 250V~
8A 400V~;10(2)A 400V~;10(4)A 400V~
1hp 120Vac;2hp 240Vac;12A,16A,25A 250Vac
- From 2 to 12 positions. Stop cam available to limit shaft rotation in any index position.
- Up to 6 circuits.
- Ambient temperature rating 125ºC / 150ºC.
- Smooth torque.
- PA. 6.6 Self extinguishing V-0 filled with 25% glass fibres.
- Momentary close (optional).
- Contact pressure by steel coil spring.
- Silver contacts.
|
|
|
|
| |
Mounting Options |
|
| |
- 2 fixing screws M4 at 28 mm centres´ holes.
- Threaded bush fixing M12 x 1.5 and L= 4.8 / 6 / 9 mm.
- Other mounting options to be consulted.
|
|
| |
Shaft |
|
| |
- Section: 6 mm x 4,6 mm.
6,35 mm x 4,7 mm.
6,35 mm x 3,95 mm.
Others by agreement. Otras, consultar.
- Lenght: up to 32 mm.
- Through shaft (optional).
- Shaft on the electrical tabs side (optional).
|
|
| |
Terminals |
|
| |
- Tab:
6.35 mm x 0.8 mm single or double.
4.8 mm x 0.8 mm single.
- Screw terminal.
- Terminal for printed circuit.
|
|
| |
