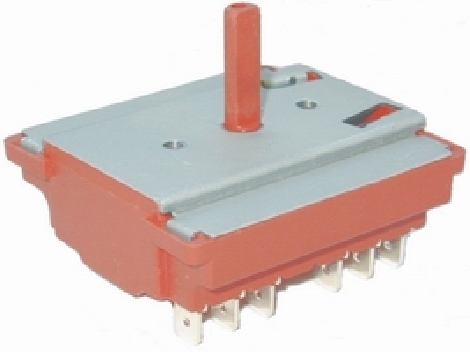

7 PA

Prodotto: Commutatori | Categoria: Serie 7PA
Specifications

  • 12(3)A 250V~;16(4)A 250V~;16(8)A 250V~
    1hp 120Vac;2hp 240Vac;12A,16A,25A 250Vac
  • Temperature: 105°C.
  • PA. 6.6 Self extinguishing V-0 filled with 25% glass fibres.
  • Contacts: Silver.



  Mounting Options

  • 2 fixing screws M4 at 28 mm centres´ holes. / 2 fixing screws UNC 8-32" at 19 mm. centres´ holes.
  • Threaded bush fixing M12 x 1.5 and L= 4.8 / 6 / 9 mm.

  Shaft

  • Section: 6 mm x 4,6 mm.
    6,35 mm x 3,95 mm.
    Others by agreement.
  • Length: up to 35 mm.

  Terminals

  • Tab: 6,35 mm x 0,8 mm.


Some Typical Applications
