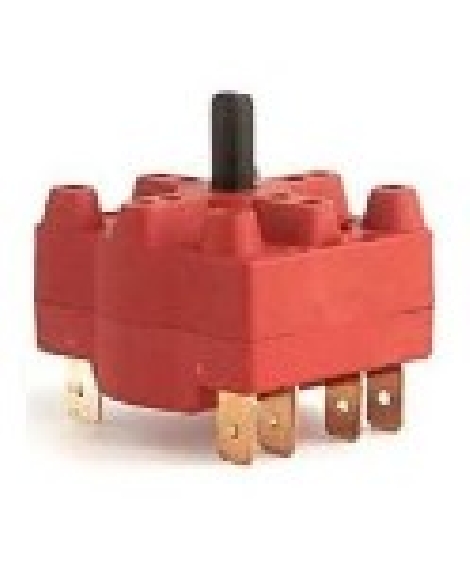

| Specifications |
|
| |
- 12(3)A 250V~;16(4)A 250V~;16(8)A 250V~
8(2)A 400V~;10(2)A 400V~;10(4)A 400V~
1hp 120Vac;2hp 240Vac;12A,16A,25A 250Vac
- From 2 to 12 positions. Stop cam available to limit shaft rotation in any index position.
- Up to 4 circuits.
- Ambient temperature rating 105ºC.
- Smooth torque.
- Momentary close (optional).
- PA. 6.6 Self extinguishing V-0 filled with 25% glass fibres.
- Contact pressure by steel coil spring.
- Silver contacts.
|
|
|
|
| |
Mounting Options |
|
| |
- 2 thread forming screws Ø 3.3 mm mm at 19 or 28 mm centres´ holes.
- Threaded bush fixing M12 x 1.5 and L= 5 or 8 mm.
- Snap-in mounting system.
- Metallic bracket (optional).
- Other mounting options to be consulted.
|
|
| |
Shaft |
|
| |
- Section: 6 mm x 4,6 mm.
6,35 mm x 4,7 mm.
6,35 mm x 3,95 mm.
Others by agreement.
- Lenght: up to 32 mm.
|
|
| |
Terminals |
|
| |
- Tab: 6.35 mm x 0.8 mm.
- Dummy terminals (optional).
|
|
| |
