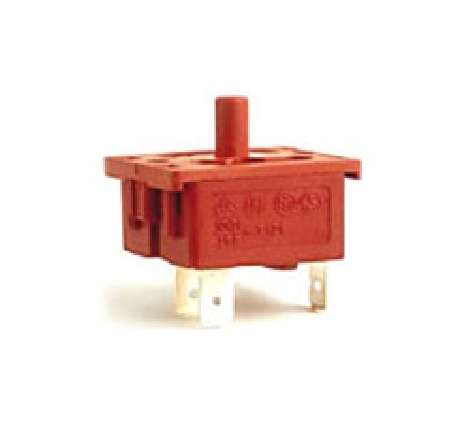

| Specifications |
|
| |
- 10(3)A 250V~
6(1,8)A 400V~
1/4 hp 125Vac
- Indexing at 36º, 45º, 60º or 90º.
- Maximum 4 circuits.
- Ambient temperature rating 125ºC.
- Smooth torque.
- Momentary close (optional).
- PA. 6.6 Self extinguishing V-0 filled with 25% glass fibres.
- Contact pressure by steel coil spring.
- Silver contacts.
|
|
|
|
| |
Mounting Options |
|
| |
- 2 thread forming screws Ø 3.3 mm at 28 mm centres´ holes.
- Threaded bush fixing M12 x 1.5 and L= 5 or 8 mm.
- Snap-in mounting system.
|
|
| |
Shaft |
|
| |
- Section: 6 mm x 4,6 mm.
6,35 mm x 4,7 mm.
6,35 mm x 3,95 mm.
Others by agreement.
- Lenght: up to 32 mm.
- Through shaft (optional).
|
|
| |
Terminals |
|
| |
- Tab: 6.35 mm x 0.8 mm.
4.8 mm x 0.8 mm.
- Terminal for printed circuit.
|
|
| |
