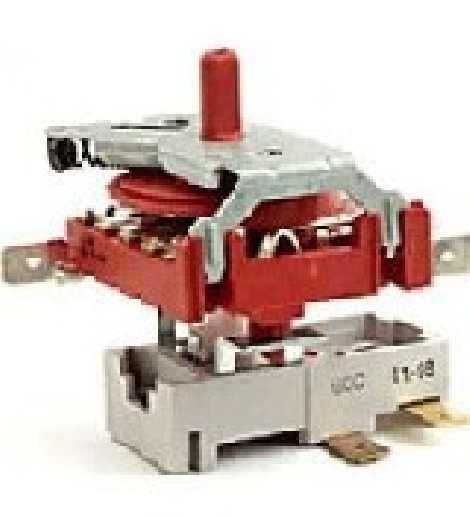

Prodotto: Commutatori | Categoria: Serie 46RCTH
Specifications

  • 12A 250V~;16(4)A 250V~;16(8)A 250V~
    8A 400V~;10(2)A 400V~;10(4)A 400V~
    1hp 120Vac;2hp 240Vac;12A,16A,25A 250Vac
  • Up to 6 circuits.
  • Ambient temperature rating 125ºC / 150º
  • Smooth torque.
  • PA. 6.6 Self extinguishing V-0 filled 25% with glass fibres.
  • Contact pressure by steel coil spring.
  • Silver contacts.



  Mounting Options

  • 2 fixing screws M4 at 28 mm centres´ holes.
  • Threaded bush fixing M12 x 1.5 and L= 4.8 / 6 / 9 mm.

  Shaft

  • Section: 6 mm x 4,6 mm.
    6,35 mm x 4,7 mm.
    6,35 mm x 3,95 mm.
    Others by agreement.
  • Lenght: up to 32 mm.

  Terminals

  • Screw terminal.
  • Tab:
    6.35 mm x 0.8 mm single or double.
    4.8 mm x 0.8 mm single.
